GSoC Week 1 Coding Period

I believe that being able to see something helps a lot with the comprehension so expect a lot of schemas about what I do from now on.

First, I’ll explain what this project consists of in simple terms.

This project is the continuation of Eric Ju’s and Calvin Wan’s work on remote-object-info for the cat-file command plus extending it to support %(objecttype).

What does remote-object-info do?§

When you use git cat-file --batch-command with info, it only queries locally. If the OID doesn’t exist in your local repo it returns <OID> missing and doesn’t fetch anything. remote-object-info aims to extend this to make fetching the object metadata remotely from the server viable, without having to download them beforehand. Why fetch the full object when you just want its size or type?

The project goes back to 2021 with Calvin’s protocol v2 extension for object-info and last year Eric’s series that brings that extension up to the client side at the cat-file --batch-command. Eric’s work never got merged due to unresolved issues. Here is where I start.

What I did this week§

Well Git is always very active and from last year until today, a lot has happened and Eric’s series had some conflicts that needed to be resolved before starting with the project.

I had already started some days ahead of the coding period because I wanted to resolve all the conflicts to start from day 0 coding and thinking what I have to do.

The first part of my project consists of addressing the feedback left from Eric’s v11, mostly style, but one important part about how the unsupported placeholders are handled.

Static allow-list for remote placeholders§

Eric’s code used strstr() to validate the placeholders, which was not enough. Unsupported placeholders like %(objecttype) caused segfaults or dies directly. The idea is to replace this with an allow-list in expand_atom() that returns an empty string for unsupported placeholders, as Jeff King suggested.

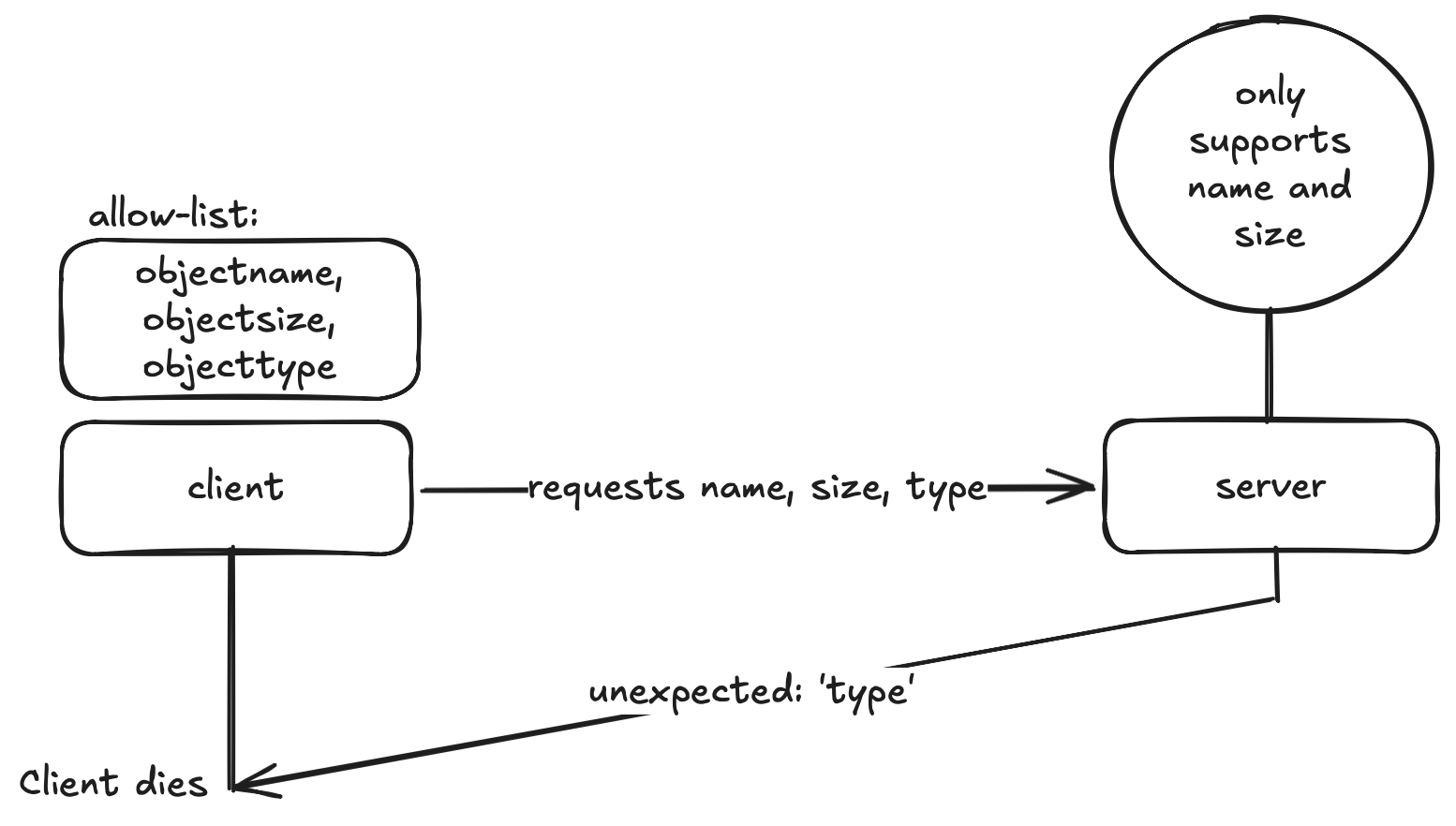

I first thought of a simple static list where the supported placeholders were.

But this static allow-list has a problem

The backward and future compatibility of this approach is very poor if not non-existent.

This static approach is only reliable if the client and the server support the same capabilities.

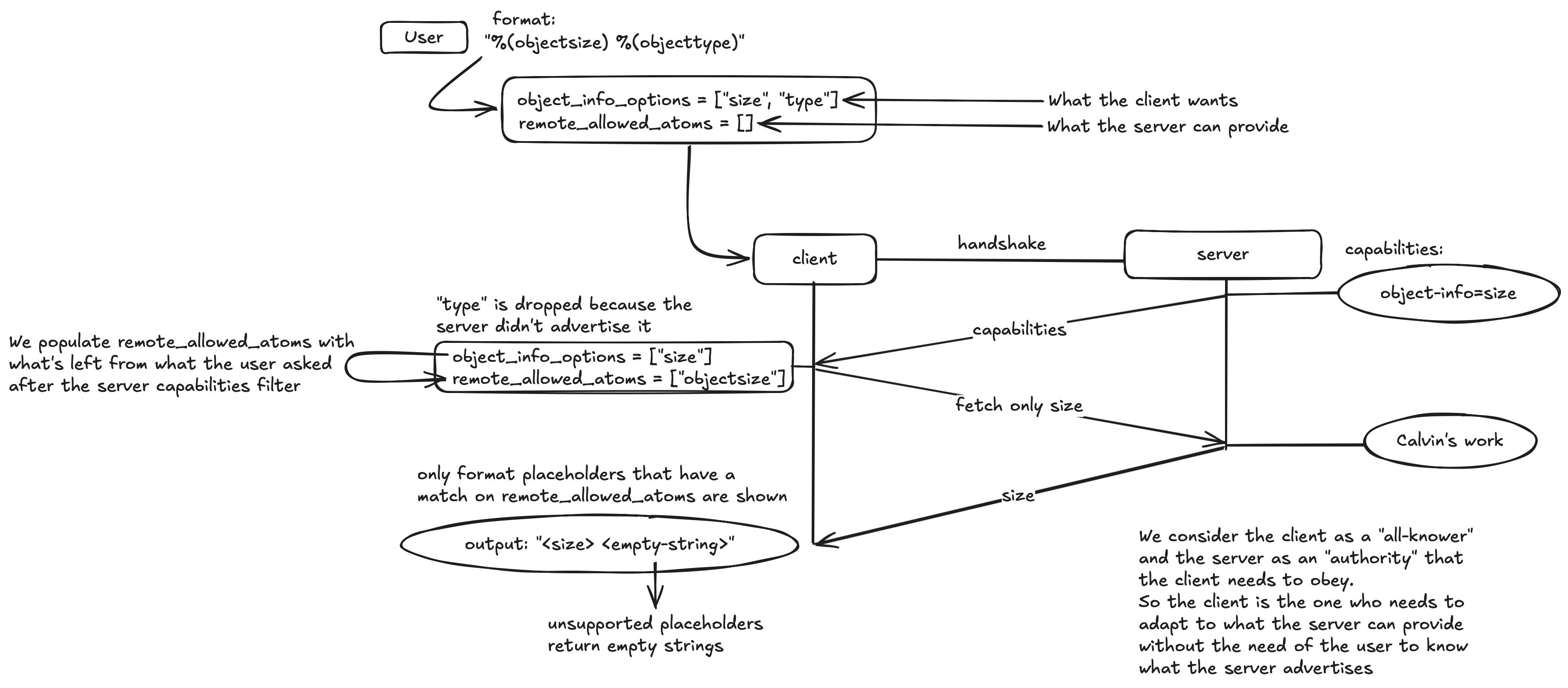

Dynamic allow-list§

We have to think about the client as an “all-knower” it knows every placeholder option and it can ask whatever it wants and the server as an “authority” that the client has to obey.

So the client is the one who needs to adapt to what the server can provide without the need of the user to know what the server advertises.

This approach solves the client vs different servers making servers that only support size and future ones that support more options can be fetched by the same client.

This hasn’t been posted on the mailing list yet so it might change. But I really think this is the right approach, though with the empty strings we now have a problem: known but unsupported vs empty data. Placeholders like %(rest) and %(objectmode) can return an empty string, so, how do we differentiate unsupported placeholders that return an empty string vs the ones which their data is genuinely empty? Even if these placeholders are out of the scope currently, they will be implemented in the future so we have to think about this, as this will be the foundation for the rest of the placeholders.

Also, I still have a pending patch about indentation of visual roots at git log --graph, which I’m giving its final tweaks with the help of my great mentors Karthik and Chandra but I’ll keep this post focused on GSoC.

I enjoy making reviews also, it’s really cool to discuss and learn, so I try to read what is sent to the mailing list.

What to expect§

If this continues, the client could fill the allow-list to handle every placeholder as if it was local leaving only the server side work to implement for %(objecttype) and the rest of options that will come in the future.

Once we have the client side done, I’ll start with the server side to implement %(objecttype), and who knows, if there is time I want to add more support for more metadata.

I’m having lots of fun already and I’m very thankful to both my mentors Karthik and Chandra who are very supportive and helpful.

See you next week,

Pablo.
